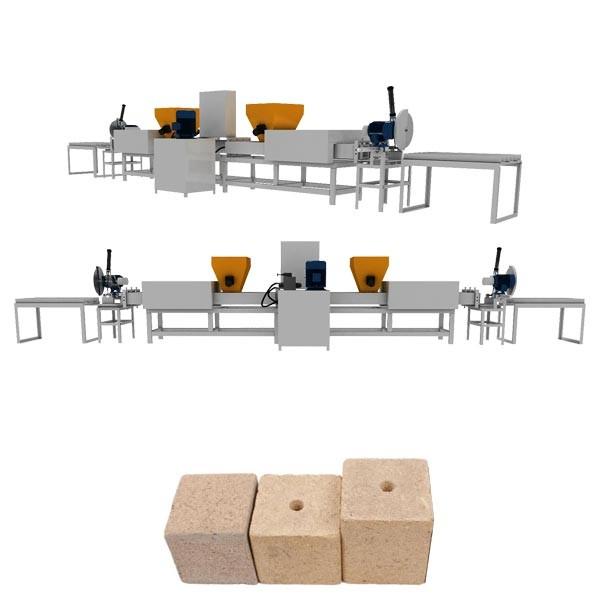

Portugal Hydraulic Sawdust Wood Pallet Block Press Machine
Introduction of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine
1. Portugal Hydraulic Sawdust Wood Pallet Block Press Machine can be customized at your request. You just need to tell us what you want or a draft drawing, we can provide you the suitable machines.
2. The raw materials of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine could be sawdust, shavings, branches, used wooden pallets, and waste wood. That would be useful to recycle waste wood material and be an environmentalist.
3. Portugal Hydraulic Sawdust Wood Pallet Block Press Machine is used hydraulic transmission, horizontal driving the mould to continuous extruding wood pallet blocks, and no interruption.
4. Portugal Hydraulic Sawdust Wood Pallet Block Press Machine is easy to operate, and 1 person can look after 3 working machines. Just set the parameters of Portugal European sawdust pallet block machine and feeding raw mixed materials, then waiting for the out pallet blocks.
5. The final products of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine are pressed pallet blocks, and they have a smooth and beautiful surface with a large carrying capacity. They are strong, durable, and away from worms.
Technical Parameters of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine
| Model | TYS | TYD | TYT |
| Size (mm) | 4800*780*1320 | 4800*780*1320 | 4800*900*1420 |
| Length and width of block (mm) | 75-145 |
| Power (kW) | 16.86 | 22.26 | 30.26 |
| Density (kg/m3) | 550-600 |
| Glue consumption (kg/m3) | 90-100 |
| Production efficiency (m3/24h) | 2-5 | 3-6 | 5-9 |
| Dimension with saw (mm) | 8000*600*1500 | 8000*700*1500 | 8000*700*1500 |
| Weight (kg) | 1000 | 1500 | 2000 |
| Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required. |
More Details of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine:
1. The length of the heating plate has been improved from 150 mm to 200 mm. The suitable length makes the heating plate work more evenly and faster.
2. Powerful feeding system is driving by a motor. By promoting the ability to stir, the feeding system works more automatically and in high-efficiency, which is better suitable for automatic production.
3. We use the hydraulic propulsion system to provide a more stable impetus, which will improve the quality of final products.
Features of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine:

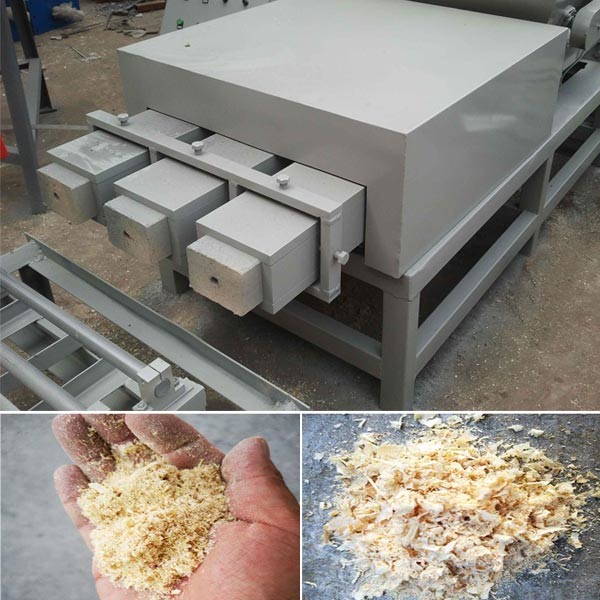

Portugal Hydraulic Sawdust Wood Pallet Block Press Machine mainly uses wood sawdust and shaving or other scrap woods and other agricultural waste like cotton seeds, shell husks as raw materials. Portugal Hydraulic Sawdust Wood Pallet Block Press Machine is mixing with glue in a certain ratio, and extruding wood pallet block by hot press heating pressure. Portugal European Sawdust Pallet Block Machine for Wood Pallet is one of the key parts of the wood pallet block production line, including the wood dryer, the gluing machine, wood crusher and conveyor, manual or automatic cutting machine or saw.
The capacity of Portugal Hydraulic Sawdust Wood Pallet Block Press Machine is more than twice as high as the traditional single head one. The final wood pallet block can be used as pallet and foot pier replaced log, also can be used in the export package. Portugal Hydraulic Sawdust Wood Pallet Block Press Machine could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment.

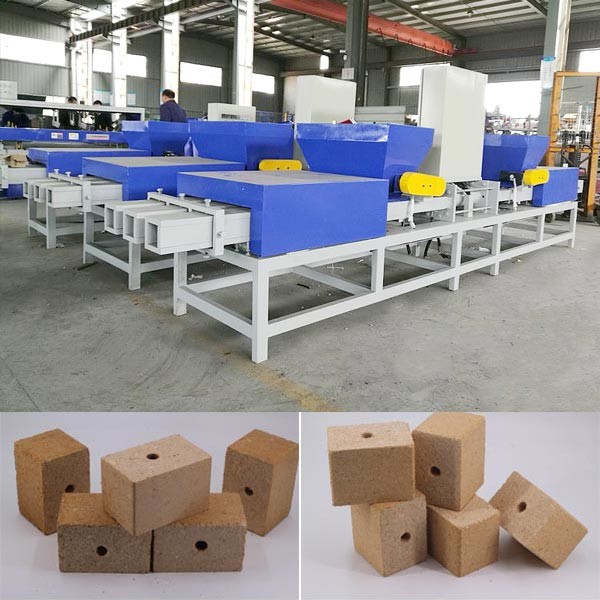

Features of Final Sawdust Pallet Blocks
The size of the final sawdust pallet block can be customized, and the size ranges from 75*75-145*145 mm, and 90*90 mm and 100*100 mm are the common styles.
1. Free fumigation and free quarantine.
2. Meeting the E1 grade.
3. More resilient to nails.
Average resistance to extraction force = 6.5 kN.
4. More resistant to deformations.
Average swelling only 2%, after soaking in water.
